Each image can be viewed individually by clicking on the thumbnail image.

A Partial List Of Our Equipment

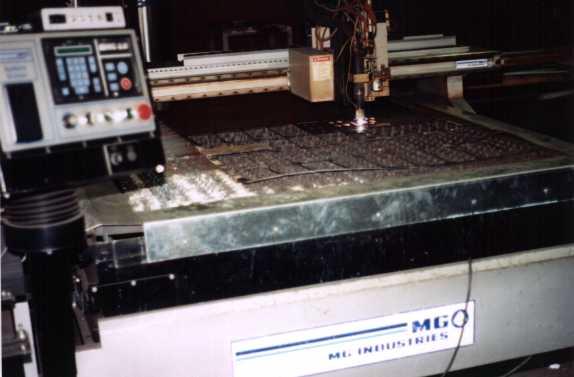

MG SYSTEMS METALMASTER CNC PLASMA CUTTING SYSTEM

  • Produces accurately referenced cutouts and contours on pre-punched parts

  • Capable of near laser quality.

  • Cuts aluminum stainless steel, copper and steel

  • Driven by CAD-CAM system.

  • Accurately cuts any design from simple shapes to highly complex art.

  • CNC Precision, accuracy to (+/-0.010) and repeatability to (+/-0.003)

Click Image For Full Sized Picture
MG Plasma Cutter

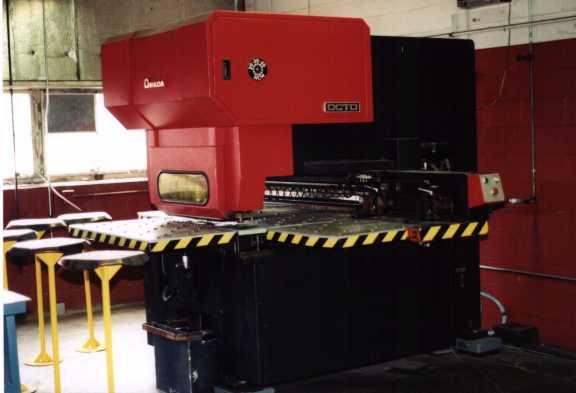

AMADA OCTO-334 CNC MULTI STATION PUNCH PRESS

  • For louvering and cutting sheet metal and plate up to ¼" thick.

  • Endless punch designs.

  • Capable of 300 strokes per minute while moving at a rate of 20 meters/minute.

  • Press Capacity 33 tons.

  • Punching accuracy of +/-0.006 inches.

Click Image For Full Sized Picture
Amada Punch Press

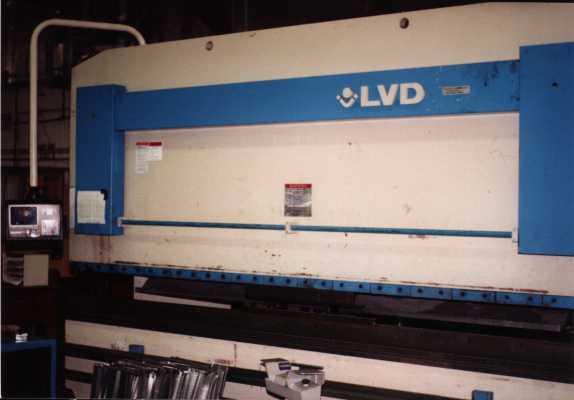

LVD CNC HYDRAULIC PRESS BRAKE

  • Provides accuracy in bending and forming sheet metal and plate.
  • Maximum pressing force of 180 tons.
  • Ram depth accuracy to 0.004 inches.
  • Travel speed of 11 inches/second.
  • Working speed of 21 inches/minute.

Click Image For Full Sized Picture
LVD Brake

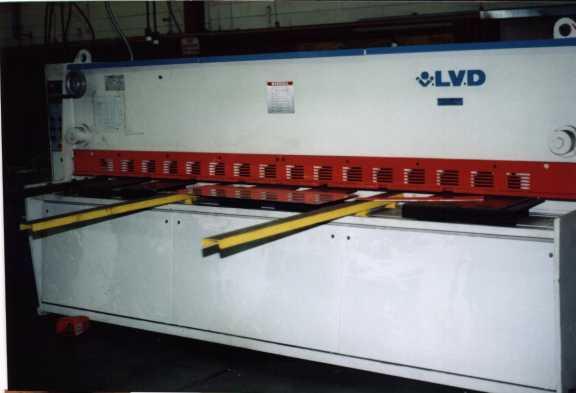

LVD 10/25 HYDRAULIC GUILLOTINE SHEARS

  • Designed to accurately shear sheet metal and plates.
  • Moto
  • rized back gauge positioning precision to +/-0.1mm.
  • 16 bit control with integrated PLC to program the following:
    -back gauge position.
    -back gauge return.
    -automatic rake calculation (based on material thickness & type).
    -cutting length

Click Image For Full Sized Picture
LVD Shear

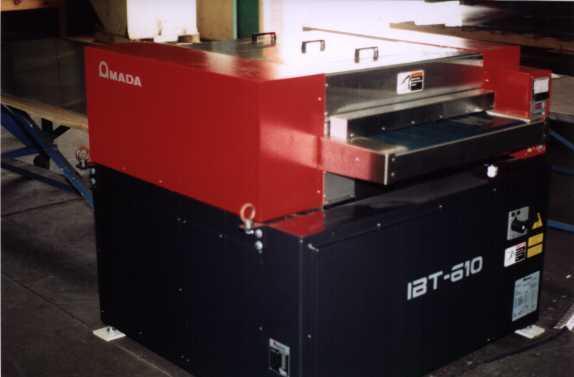

AMADA IBT-610 WET DEBURRING MACHINE

  • Process includes debur, wash, squeegee, air blow and dry.
  • Produces dust free parts.
  • Deburs formed parts with dimples and or louvers.
  • Speeds to 200 inches/minute.
  • Produces custom grain finishes.

Click Image For Full Sized Picture




SHEET FABRICATION EQUIPMENT

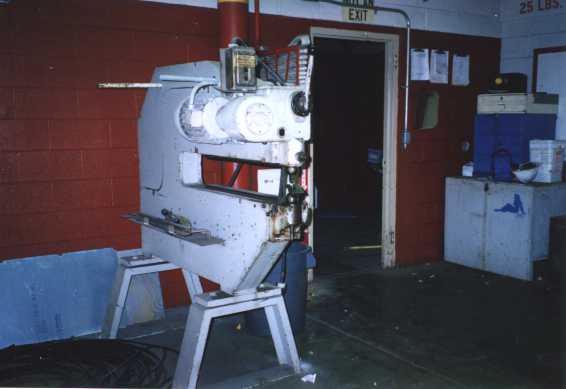

  • PULLMAX Forming Equipment.

  • PITTSBURGH Lock Forming Equipment.

  • LOCKFORMER Cheek Bender

  • TENNSMITH Brakes

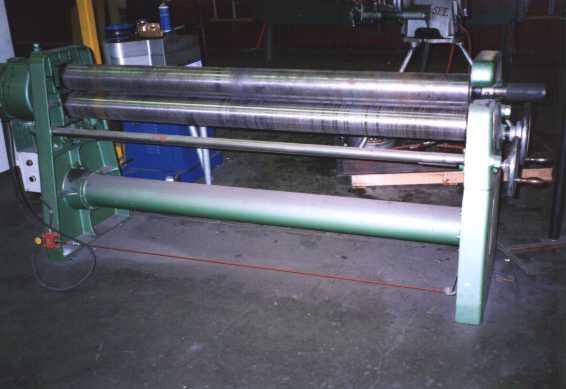

  • COMEQ ROUNDO Roll Form

  • PEXTO Roll Form

  • DAYTON Notcher

  • BEVERLY Shear

  • NIAGARA Shear

Click Image For Full Sized Picture



STEEL FABRICATION EQUIPMENT

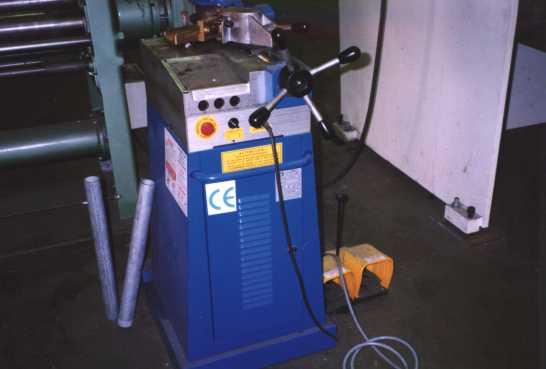

  • ERCOLINA Pipe and Shape Bender

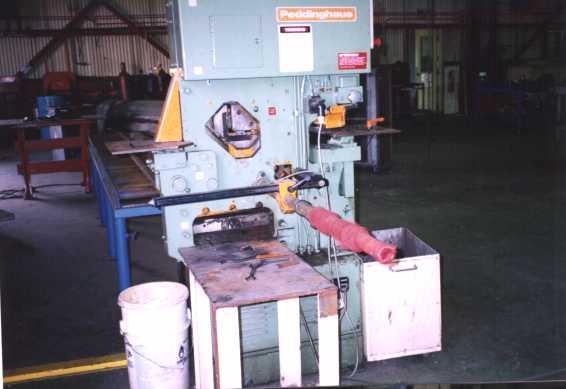

  • PEDDINGHAUS 110 Ton Ironworker

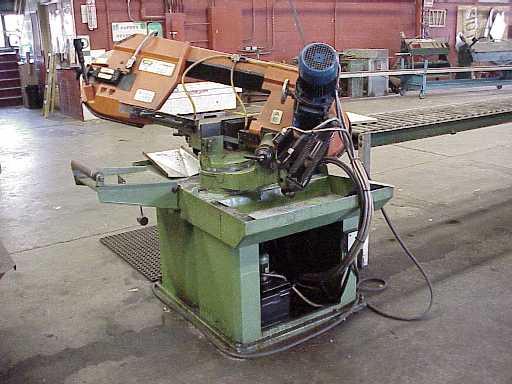

  • FMB Semi Automatic Horizontal Saw

  • RIGID Pipe Threading Equipment

Click Image For Full Sized Picture


PRECISION MACHINING EQUIPMENT

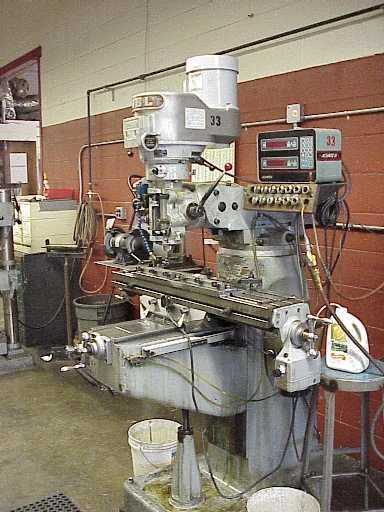

  • SOUTH BEND  2 HP Vertical Milling Machine

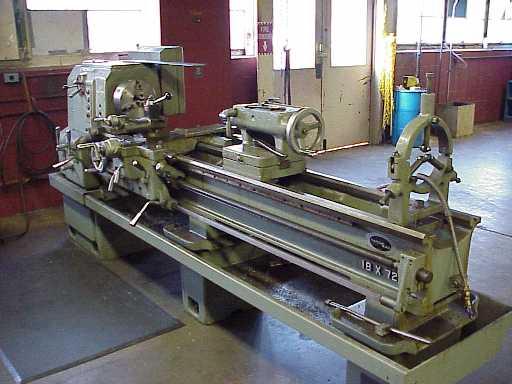

  • CINCINNATI  18" X 72" Lathe

  • WILTON 25" Power Feed Drill Press

Click Image For Full Sized Picture


WELDING/CUTTING EQUIPMENT

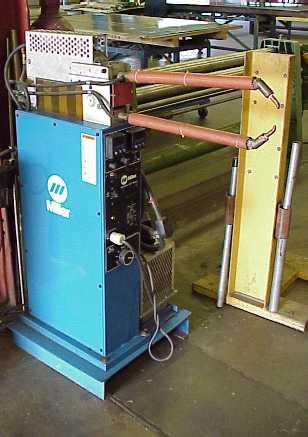

  • MILLER Resistance Spot Welder

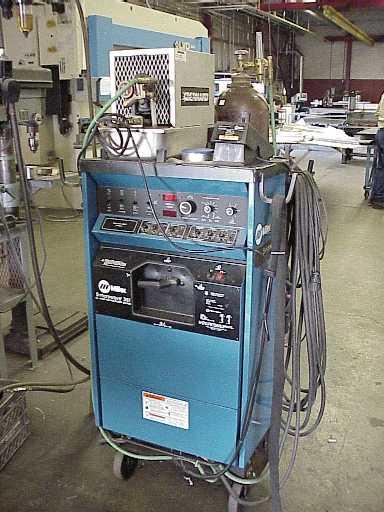

  • MILLER Syncrowave Welder

  • HOBART TIG Welder

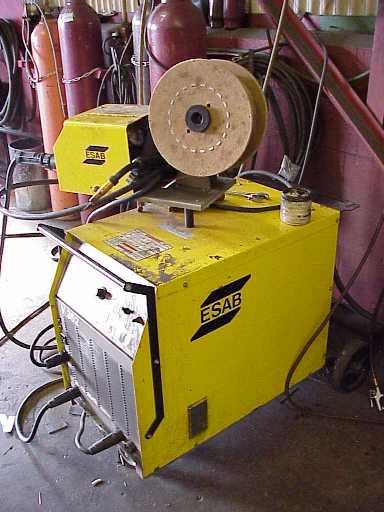

  • ESAB MIG Welder

  • TDC Pacmaster Plasma Cutter

  • ESAB Portable Plasma Cutter

  • THERMOPLASTICS Portable Plasma Cutter

Click Image For Full Sized Picture


SOME OF OUR OTHER EQUIPMENT INCLUDES

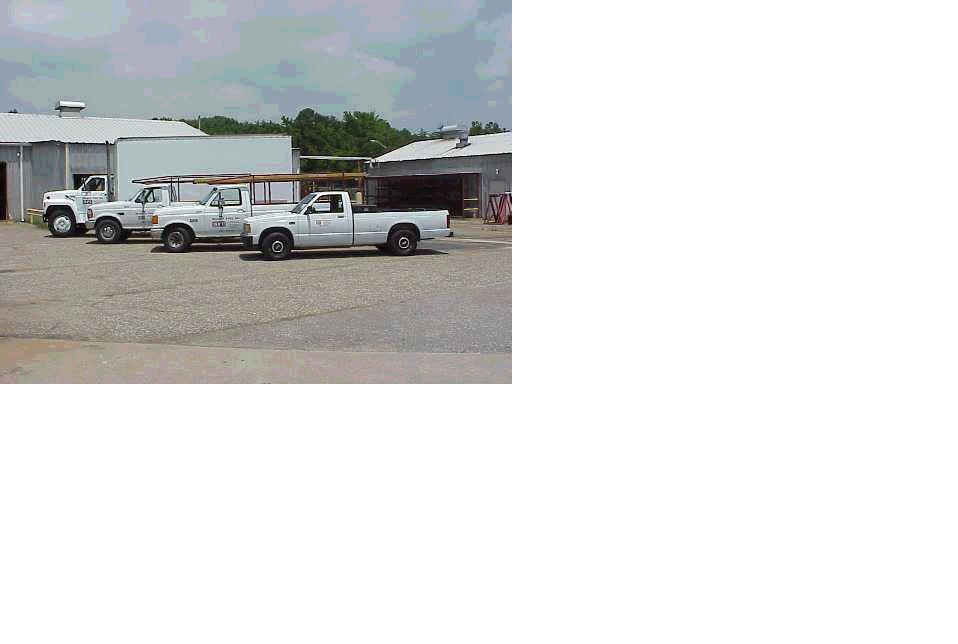

  • Delivery and Service Vehicles

  • Painting Facilities



For a complete listing of equipment:
See our contacts page or
Email us at  info@stewartfelty.com or
Call us at (757) 887-0500
